NDS Pro Series 12" Light Traffic Channel Grate

No reviews yet Write a Review
$179.90
SKU:
NDS847
UPC:
52063808475
Availability:
Usually Ships in 24 Hours

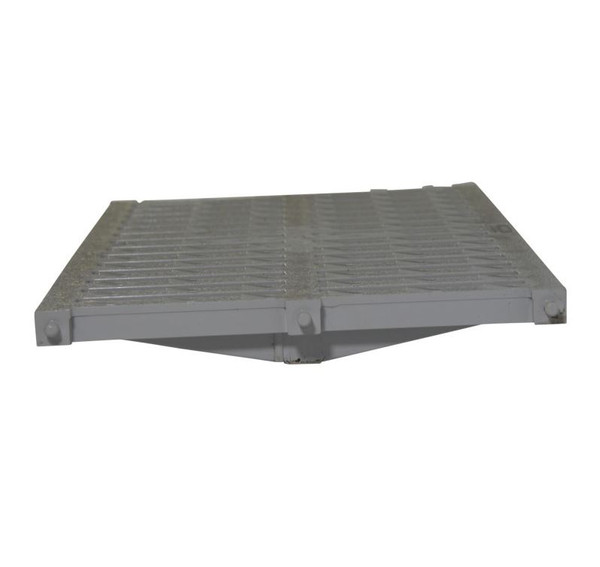

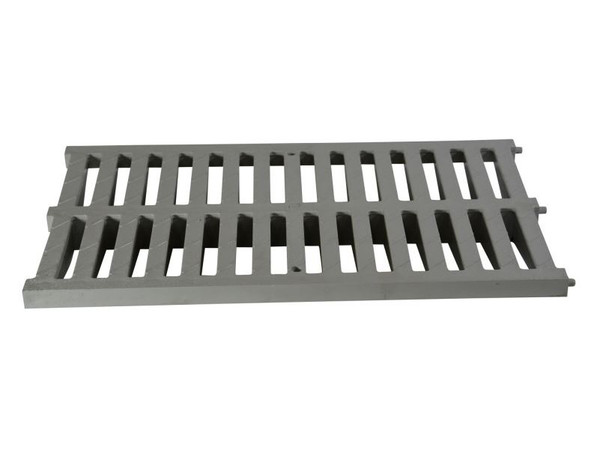

NDS Pro Series 12" Light Traffic Channel Grate

$179.90

Use with 12" Pro Series Channel Drain Series

Features

  • Actual dimension 11 3/4" x 19 5/8" (aPPROX 20") x 3/4"
  • High impact PVC light traffic channel grate
  • Use part #849 Grate Security Clip to secure grate to channel
  • Open surface area 48.77 square inch/foot
  • 63.89 GPM per foot
  • Recommended for medium-duty pneumatic tire traffic.
  • Autos and light trucks less than 20 mph
  • Class B Load Rating: 61-175 psi
  • See Technical Specs • Product Brochures & Specifications for installation recommendations
