12" MarMac MacWrap Repair Coupler (RCP to RCP) (24" Wide)
click to zoom in

12" MarMac MacWrap Repair Coupler (RCP to RCP) (24" Wide)

No reviews yet Write a Review
$157.58
SKU:
MM-MWREP12RCP
Availability:
Usually Ships in 7-10 Business Days

12" MarMac MacWrap Repair Coupler (RCP to RCP) (24" Wide)

$157.58
Choose Option

12" MarMac MacWrap Repair Coupler (RCP to RCP) (24" Wide)

$157.58
✕

video gallery

Description

MACWRAP REPAIR COUPLER

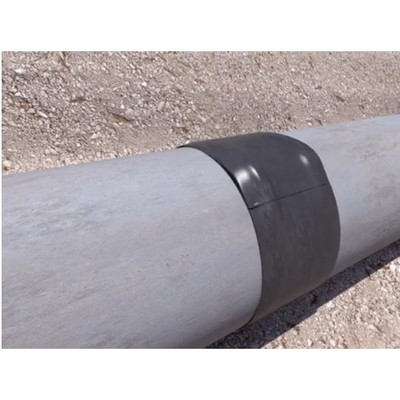

MacWrap Repair Coupler is an advanced, external joint coupler, specifically designed to repair compromised joints of precast structures while simultaneously preventing infiltration. MacWrap Repair couplings can be used for the rehabilitation of tongue & groove and bell & spigot reinforced concrete pipe as well as manhole sections, restoring the integrity of damaged joints.

With its membrane comprised of the same materials as a standard MacWrap, the width of MacWrap Repair Couplers is increased to 24”, four compression bands are utilized versus the standard two, and the thickness is increased by approximately 50%. This is a heavy-duty, 3-ply coupler as the membrane contains an additional layer of polyethylene and mastic.

External seals for reinforced concrete pipe joints

  • Size: 12" ID  16" OD
  • Strong, permanent, shear & puncture resistant
  • Specially-formulated mastic layer
  • Easily installed & immediately inspectable
  • Full-perimeter, positive seal = infiltration-proof
  • Heavy-duty, high-quality design
  • Protection from corrosion, acids & alkali by using a MacWrap CR (Chemical Resistant)

***SPECIAL ORDER***

***Non-cancellable and non-returnable***

Available in sizes 12" - 144" Round & Elliptical

Other MacWrap versions available:

  • MacWrap for Manholes
  • MacWrap for Box Culverts
  • MacWrap Chem-Resistant
  • MacWrap RCP Coupler

SPECIFICATION

MacWrap integrates several unique components into a single, full-perimeter, external sealing band. The coupler composition consists of:

  • Heavy duty polyethylene backing
  • Internal woven polypropylene reinforcement
  • High-tensile compression bands
  • Specially formulated mastic contact layer

INSTALLATION

Surface preparations: Inspect the outside of the joint. Brush and/or repair surface as needed to ensure there are no loose materials or voids. If installing on horizontal pipe, dig the bell hole for complete access to the joint.

The coupler shall be placed around the pipe, mastic side centered on the pipe joint, and then the protective release film shall be removed. The straps will then be tensioned and secured with preinstalled ratchet tensioners. The closing flap shall cover the service area and exposed straps, completing the installation. Backfill may commence immediately following the inspection of proper sealing band installation.

CAUTION: *All statements and technical information are based on tests and/or data which MarMac Manufacturing deems reliable, however, MarMac does not warrant or guarantee the accuracy or completeness of such information. Please read further manufacturer liability and warranty information.

Specifications
