60" MarMac Double-Wide PolySeal Coupler 6067RCD
click to zoom in

60" MarMac Double-Wide PolySeal Coupler 6067RCD

No reviews yet Write a Review
$853.71
SKU:
MM-POLY-60DBL
Availability:
Usually Ships in 7-10 Business Days

60" MarMac Double-Wide PolySeal Coupler 6067RCD

$853.71

video gallery

Description

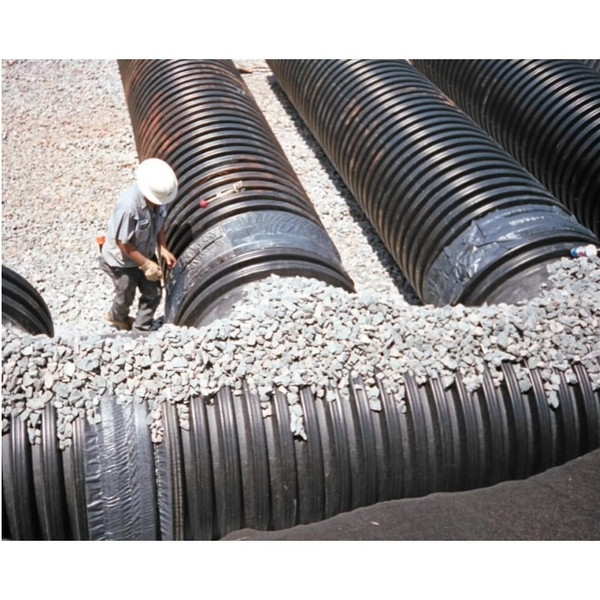

MarMac PolySeal is a flexible, high-strength pipe coupling that permanently seals and restrains corrugated plastic pipe. PolySeal Couplers are over-engineered, reinforced external joint seals designed to connect HDPE / HDPP corrugated pipe, while remaining both infiltration proof and exfiltration resistant. PolySeal Couplings are perfect for cut & butt joints, field repairs, new detention systems, and more.

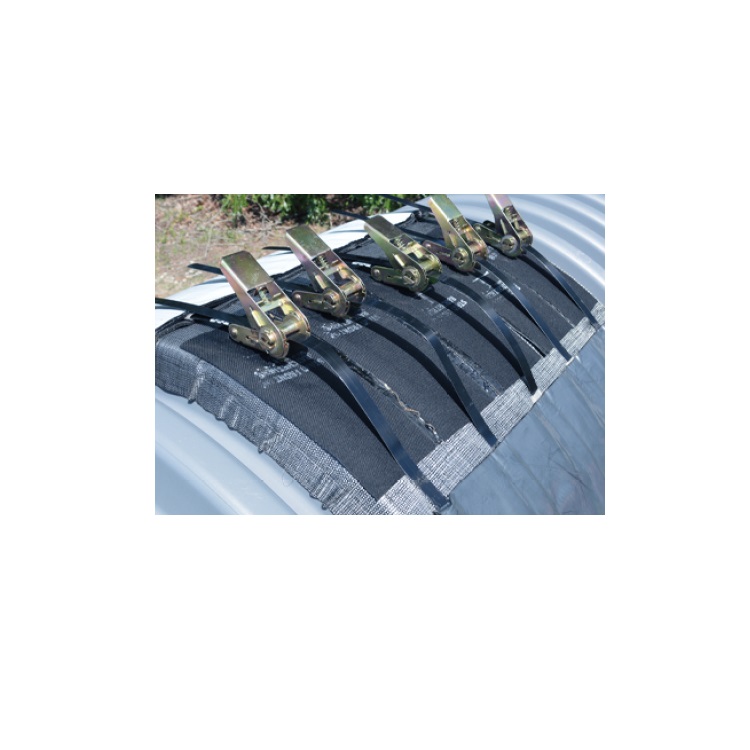

MarMac’s Double-Wide PolySeal Couplings are heavy-duty 3-ply as they are manufactured with an additional layer of polyethylene and mastic. Nearly twice the width of a standard PolySeal, our Double-Wide PolySeal Coupler comes with five integrated compression bands, as opposed to three with our Standard coupler.

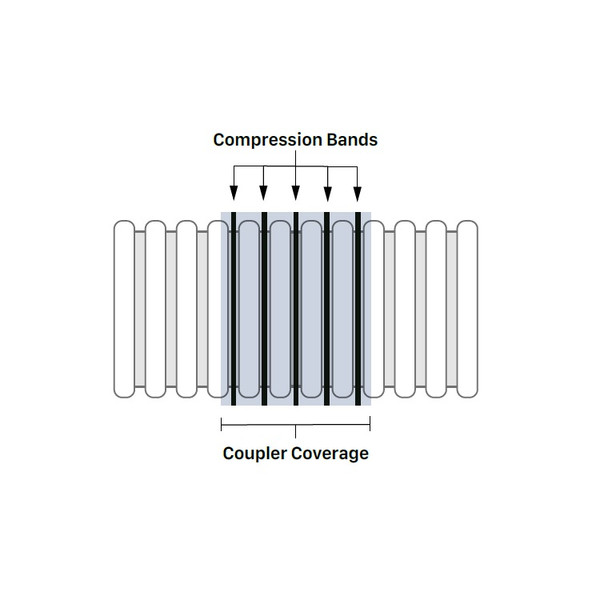

Our Double-Wide PolySeal coupler has five integrated compression bands. Sizes under 30″ are standard-duty and use hose clamp bands made of high-strength 409 or 304 stainless steel. Heavy-duty sizes over 30″ contain an additional membrane layer of polyethylene and mastic, and utilize built-in ratchet straps.

Common uses include repairs, such as instances where pipe ends have minor damage or to cover small punctures in a pipe caused by fork trucks or similar. Additionally, Double-Wide PolySeal can be used in place of standard PolySeal to make a stronger, stiffer joint.

  • Fits corrugated HDPE & HDPP pipe
  • Size: 60"
  • Compression Bands: 5 Built-In Ratchet Clamps
  • Infiltration-proof exfiltration-resistant
  • Easily installed & immediately inspectable
  • Millions installed today with nearly a 100% success rate
  • Permanent protection with proven performance
  • Strong, shear & puncture-resistant

SPECIFICATION

PolySeal is manufactured with interval layers of our rubberized mastic, specially formulated to adhere aggressively to all known pipe surfaces. A sheet of puncture and shear-resistant woven polypropylene, and an outside backing of cross-laminated polyethylene makes PolySeal resistant to most acids and bases (additional protection available with Chemical Resistant PolySeal). The integrated compression bands mechanically “lock” into the corrugations of the pipe, bonding the mastic to the pipe wall, and forming a permanent seal.

The minimum length of a PolySeal Coupler is the circumference of the outside diameter of the pipe, plus eight inches for overlap.

INSTALLATION

Surface preparations: Inspect the outside of the joint. Brush surface as needed to ensure it is free of debris. If installing on horizontal pipe, dig a bell hole for complete access to the joint.

The coupler shall be placed around the pipe with the mastic side to the pipe wall and spanning the joint, while centered on the joint gap to be sealed. The protective film shall be removed and the coupler applied with the overlap at the top of the pipe. The tensioning straps shall be aligned between the pipe corrugations and tightened. The closing flap protective film shall be removed and the closing flap shall cover the exposed straps and the work area.

Also Available:

CAUTION: *All statements and technical information are based on tests and/or data which MarMac Manufacturing deems reliable, however, MarMac does not warrant or guarantee the accuracy or completeness of such information. Please read further manufacturer liability and warranty information.
