8" Flexible Chemical Coupling (PL/CI/DU/DI/GL) CC225G
click to zoom in

8" Flexible Chemical Coupling (PL/CI/DU/DI/GL) CC225G

No reviews yet Write a Review
$535.95
SKU:
CC225G
Availability:
Usually Ships in 1-3 Business Days

8" Flexible Chemical Coupling (PL/CI/DU/DI/GL) CC225G

$535.95

video gallery

Description

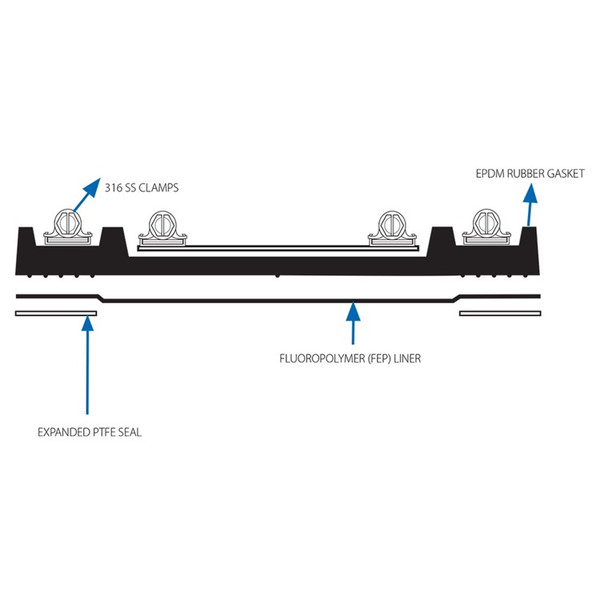

Fernco Chemical Couplings provide a flexible and watertight connection on drainage systems that require a high chemical resistance to a wide range of chemicals.  Manufactured to meet specific site requirements, Fernco Chemical Couplings withstand the widest possible range of chemicals, due to the shear band and clamping bands encasing a high-performance elastomeric sleeve with a chemically resistant one-piece Fluoropolymer (FEP) liner and PTFE seals.

FEATURES

  • Pipe Type: PL: Plastic / CI: Cast Iron / DU: Duriron / DI: Ductile Iron / GL: Glass
  • Pipe Size: 8"
  • Min./Max pipe OD:  8.35" - 9.21"
  • Transitions dissimilar chemical piping and sizes
  • Chemical resistant drain system, connects chemical waste piping to chemical waste tanks
  • One piece Fluoropolymer liner
  • Suitable for above and below ground use
  • Max temp: 212°F (consistent), 266° F (intermittent)
  • Minimum temperature -50°F
  • 4.3 PSI maximum test pressure

APPLICATIONS

  • Connects chemically resistant DWV pipe and  fittings
  • Connects drain pipe for: chemistry labs, research  labs, beverage plants, commercial kitchens,  printing, as well as medical, pharmaceutical, pulp, film and chemical facilities
  • Custom sizes available upon request

INSTALLATION INSTRUCTIONS

  1. Champfer and deburr both pipe ends.
  2. Mark the pipes adjacent to the coupling bands.
  3. Apply Ten (10) layers of PTFE tape directly over the lines on the pipe.
  4. Center the FEP liner over the pipe ends and PTFE tape.
  5. Use a heat gun to shrink the FEP liner to the pipe.
  6. Center the coupling and tighten the bands.
  7. Ensure all bands are tightened to 60 inch pound.
  8. Test for leaks.
