ABT Polydrain 6" Gender Mender Modified Channel 250GM

No reviews yet

Call for price & availability

Current Stock:

10.7" to 11" Overall Depth ABT PolyDrain Channel

Features

PolyDrain polymer concrete trench drains give the specifier the precision and accuracy required to satisfy hydraulic and chemical resistant demands.
PolyDrain polymer concrete trench drains are 6.1" wide, 39.19" (3.27' / 1M) with a built-in slope of 0.6%.
4" inside diameter with a radius bottom
10.7" to 11" Overall Depth PolyDrain Channel
10.7" end connects to channel #240
11" end connects to channel #250< li>

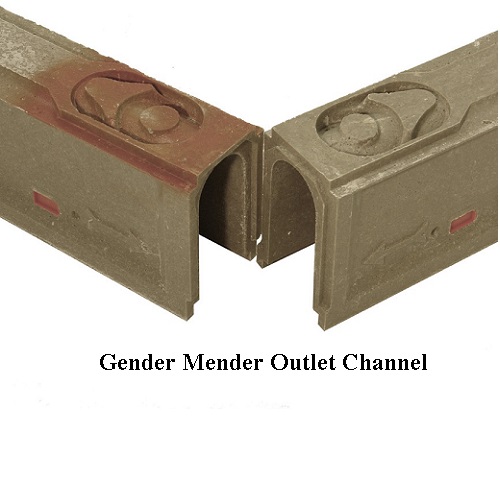

GENDER MENDER OUTLET CHANNEL: A series of specially modified channels that addresses the difficulties encountered when two sloping channels converge where a vertical outlet is required. For every outlet channel (050, 100, 150, 200, 250 and 300), a Gender Mender channel is molded with a female interlocking joint at the low point. This feature provides proper channel alignment and eliminates field fabrication for these center draining configurations.
<
Technical information available in the Specifications Library
