ABT Polydrain Trench Drain Channel 300 (11.9" to 12.2")
click to zoom in

ABT Polydrain Trench Drain Channel 300 (11.9" to 12.2")

No reviews yet Write a Review

Call for price & availability

SKU:
ABT2300
Availability:
Usually Ships in 3-5 Days

ABT Polydrain Trench Drain Channel 300 (11.9" to 12.2")

video gallery

Description

11.9" to 12.2" Overall Depth ABT PolyDrain Channel

Features

  • PolyDrain polymer concrete trench drains give the specifier the precision and accuracy required to satisfy hydraulic and chemical resistant demands. The PolyDrain Trench Drain consist of 30 interlocking sloped channels and 4 non-sloping channels.
  • Nuetral sections sections are non-sloped and used to extend the length of the system
  • APPLICATIONS: Commercial and Industrial projects including food processing plants, airports, highways, loading docks and chemical processing plants.
  • PolyDrain polymer concrete trench drains are 6.1" wide, 39.19" (3.27' / 1M) with a built-in slope of 0.6%.
  • 4" inside diameter with a radius bottom
  • 11.9" to 12.2" Overall Depth PolyDrain Channel
  • 11.9" end connects to channel #290 or #291
  • 12.2" end connects to end plate, end outlet or catch basin< li>

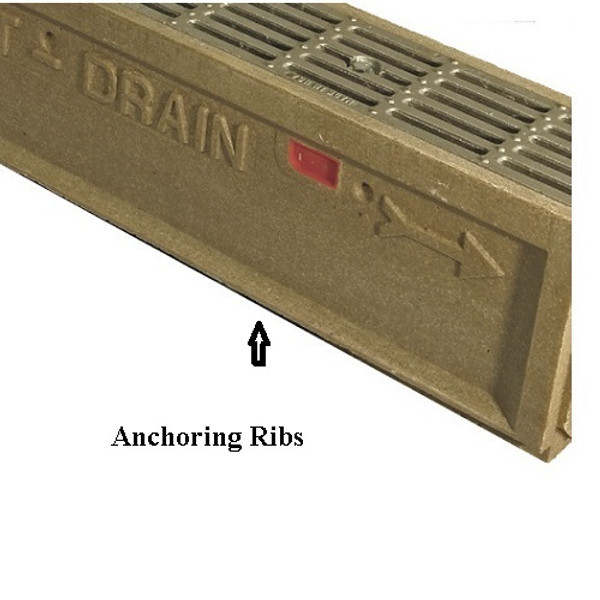

  • ACHORING RIBS: PolyDrain channels are formed with full-length anchoring ribs on each side of the channel at the base of the side wall.

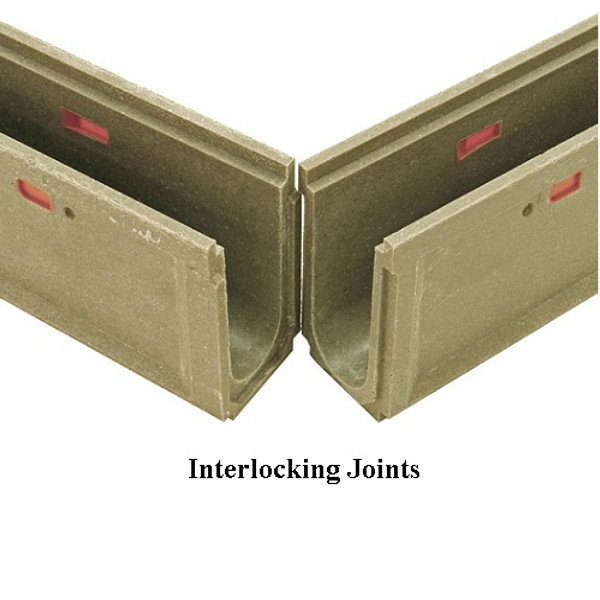

  • INTERLOCKING JOINTS: PolyDrain channels have interlocking tongue and groove joints that serve two important functions. First they aid in maintaining proper channel alignment during the pour. Second, they assist in securing channel connections to prevent fluid migration out of the system. ABT maintains a line of sealants that can be applied to channels when a sealed system is required.
  • POLYLOCK INSERTS: PolyDrain channels feature RedDot or GreenDot polyethylene inserts. These inserts, together with the grate locking devisescomprise the PolyLock grate lockdown system. RedDot inserts also provide vibration dampening that helps keep grates secure under traffic conditions.
  • INDEPENDENT ANCHORING FRAMES: Independently anchored frames are avilable to transfer the dynamic loads directly into the encapsulation concrete and channels are mechanically anchored via the full length rib. This eliminates the wheel load from creating strain on the channel and keeps the channel safely in the concrete.
  • POLYWALL SIDEWALL EXTENSIONS: PolyWall I and II Sidewall Extensions are available to allow the designer or contractor to extend a continuous-sloping channel run from 98.1 ft. (30 m) to 294.3 ft. (90 m) without necessity of a catch basin or outlet.
  • GENDER MENDER OUTLET CHANNEL: A series of specially modified channels that addresses the difficulties encountered when two sloping channels converge where a vertical outlet is required. For every outlet channel (050, 100, 150, 200, 250 and 300), a Gender Mender channel is molded with a female interlocking joint at the low point. This feature provides proper channel alignment and eliminates field fabrication for these center draining configurations.
  • INLETS, OUTLETS AND END CAPS:All 4 in. (100 mm) horizontal plates have inlet or outlet capability. As outlets, they fit the downstream end of every fifth channel, or as inlets, the upstream end of the following channel. All 4 in. (100 mm) plates are made with a PVC sleeve to accept either SCH40 or SDR35 pipe. 6 in. (150 mm) outlet plates are made with a special adapter flume. Vertical outlet plates fit over the cutouts on each of the outlet channels. 8 in. and 12 in. outlets are also available.
  • SMALL CATCH BASINS, LARGE CATCH BASINS AND TARSH BUSCKETS: Available to complete your system.
  • INSTALLATION AID #1 : PolyClip I was developed to speed channel installation and make the joining of the channels more secure before the pour. PolyClip consists of: two special securing brackets (one for either side of the channel); a Òno-floatÓ U-shaped leg that serves to maintain proper height and keep channels from floating during the pour; and a securing bolt to keep the entire appliance attached to the channel.
  • INSTALLATION AID #2: PolyClips are installed at the channel joints. Height adjustment is made by loosening the clamp bolt and sliding base brackets up or down on the rebar legs. Lateral and longitudinal adjustment plus retention are made by positioning and tightening adjustment clips on the top of the installation device.
  • OVERLAY RAILS: Available Overlay Rails are made of galvanized steel, stainless steel or brass and are applied to any standard channels. They cover and protect the channel edge in medium-duty traffic applications. When visual aesthetics are important, the Overlay Rails enhance the appearance of the PolyDrain channels. (Overlay rails for end plates are available).
  • Technical information available in the Specifications Library
