Infiltrator Quick 4 Plus Standard Chamber
click to zoom in

Infiltrator Quick 4 Plus Standard Chamber

No reviews yet Write a Review
SKU:
QUICK4CHAMBER
Availability:
In-store purchase only - Indiana locations

Infiltrator Quick 4 Plus Standard Chamber

video gallery

Description

Available for pick up at our Indiana locations Monday - Friday 7am - 4pm.
Delivery only available within Indiana.

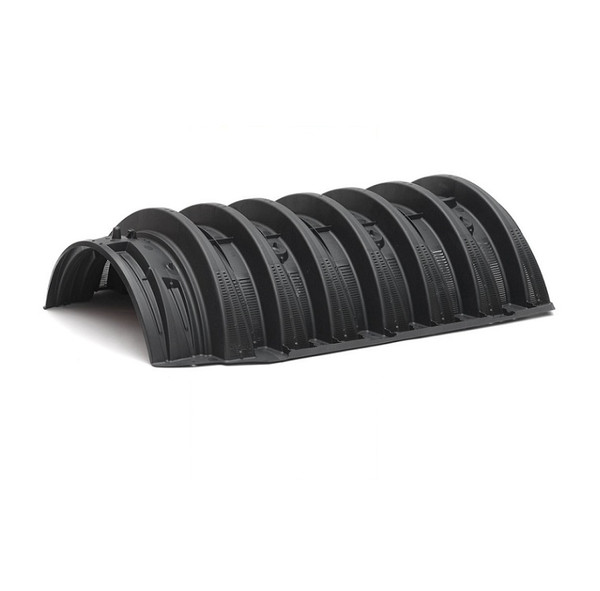

The Quick4 Plus™ Standard chamber offers maximum strength through its two center structural columns. This chamber can be installed in a 36" wide trench. Like the original line of Quick4® chambers, it offers advanced contouring capability with its Contour Swivel Connection™ which permits turns up to 10°, right or left. It is also available in 4' lengths to provide optimal installation flexibility.

Benefits:

  • Two center structural columns offer increased stability and superior strength
  • Advanced contouring connections
  • Latching mechanism allows for quick installation
  • Four-foot chamber lengths are easy to handle and install
  • Supports wheel loads of 16,000 lbs/axle with 12" of cover

Specifications:

Size
34"W x 53"L x 12"H
(864 mm x 1346 mm x 305 mm)

Effective Length
48" (1219 mm)

Louver Height
8" (203 mm)

Storage Capacity
47 gal (178 L)

Invert Height
0.6" (15 mm), 5.3" (135 mm),
8.0" (203 mm), 12.7" (323 mm)
