Liberty Q4800 Series Pre-Assembled Quadplex Grinder System
click to zoom in

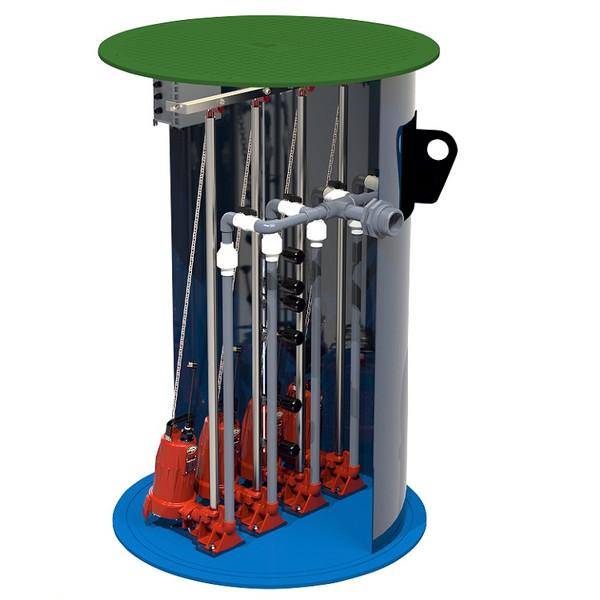

Liberty Q4800 Series Pre-Assembled Quadplex Grinder System

No reviews yet Write a Review
SKU:
Q4800QUADPLEX
Availability:
In-store purchase only - Indiana locations

Liberty Q4800 Series Pre-Assembled Quadplex Grinder System

video gallery

Description

Available for pick up at our Indiana locations Monday - Friday 7am - 4pm.
Call (317) 346-4110 or email dps-customercare@drainagesolutionsinc.com
Delivery only available within Indiana.

Q4800-SERIES Quadplex Grinder Package

  • Factory Assembled
  • 2 hp Grinder Pumps
  • Choose from single-stage LSG or two-stage LSGX-Series pumps
  • Available in a wide range of voltages
  • (See LSG or LSGX-Series literature for complete pump specifications.)
  • 3" Discharge
  • 25' Power cable length
  • 48" Diameter System
  • Available Heights: 84", 96", 120"

Features

  • Redundancy with four 2 hp  Omnivore® Grinder pumps
  • Higher flow rates up to 200 gpm
  • Comparable flow rates to higher  horsepower grinder systems
  • Easier to service and only 25% flow  loss while pump is being serviced
  • 6" Inlet hub with rubber pipe seal
  • Factory pre-assembled guide  rail system
  • Galvanized guide rail piping  (stainless optional)
  • Factory pre-assembled Schedule  80 PVC discharge piping with integral check valves and ball valves
  • Fiberglass basin with anti-flotation collar
  • Solid green fiberglass cover standard
  • Pre-mounted stainless-steel supports and brackets
  • Pre-mounted NEMA 4X junction box for electrical connections
  • Stainless-steel chain for pump lift-out
  • * Other custom basin sizes available, consult factory


Specifications
