NDS Spee-D Channel Drain Kit (Gray Wave)
click to zoom in

NDS Spee-D Channel Drain Kit (Gray Wave)

No reviews yet Write a Review
$119.95
SKU:
NDS400253GYKIT
UPC:
52063404004
Availability:
Usually Ships in 3-5 Days

NDS Spee-D Channel Drain Kit (Gray Wave)

$119.95

video gallery

Description

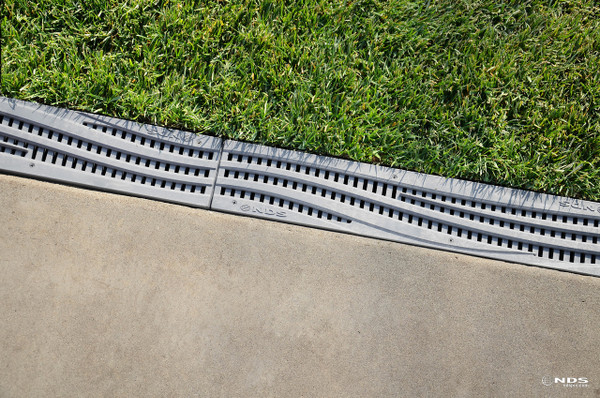

Ideal for yard, pool, patio and area drains to collect surface water while minimizing the amount of debris entering the system.

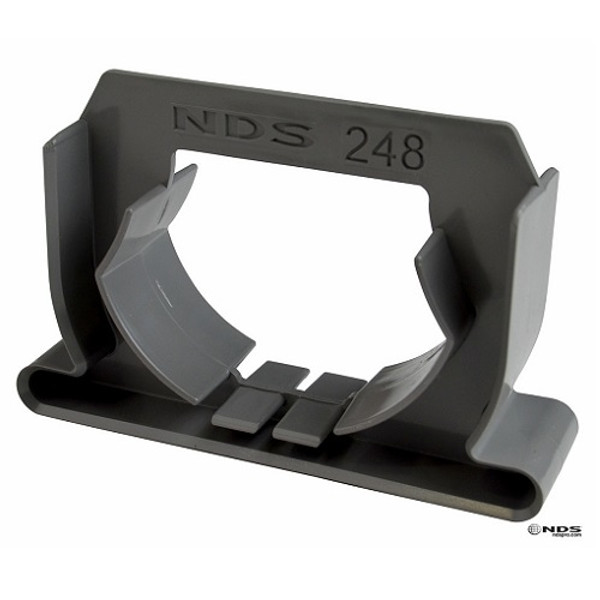

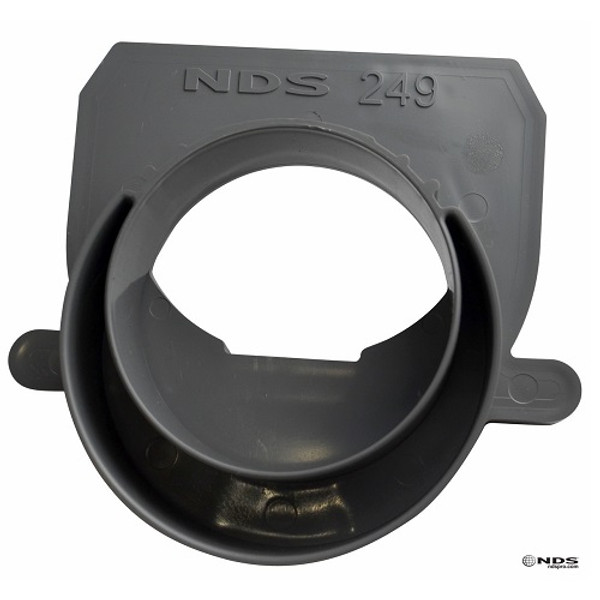

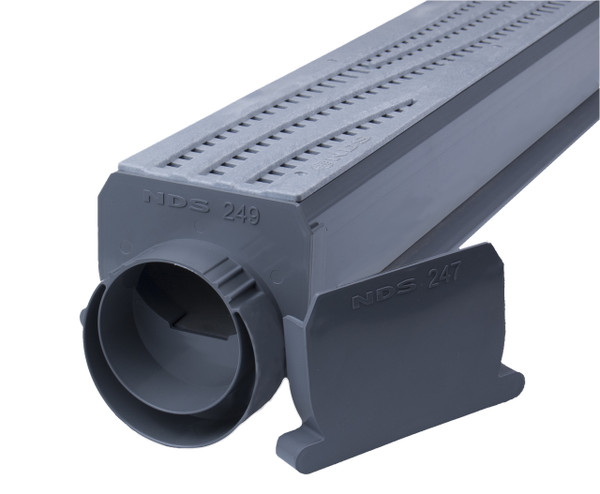

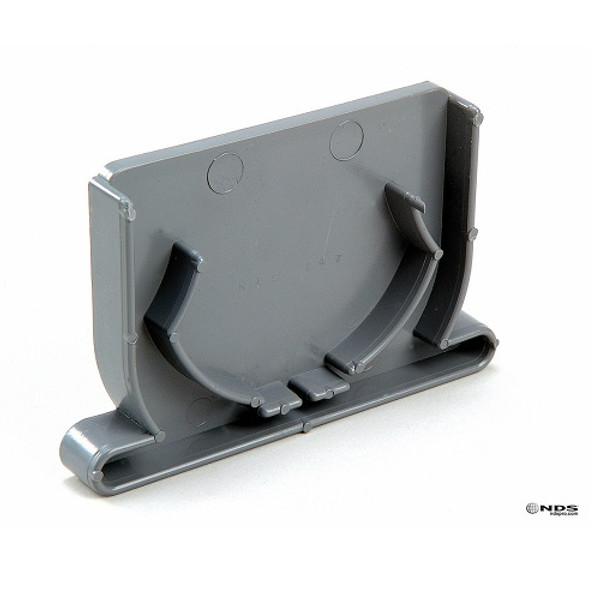

Kits includes: NDS Spee-D Channel 4" (400), 2 NDS Spee-D Channel Gray Wave Plastic Grates (253GY), NDS Coupling (248), NDS Spee-D Channel End Outlet (249) and NDS Spee-D Channel End Cap (247)

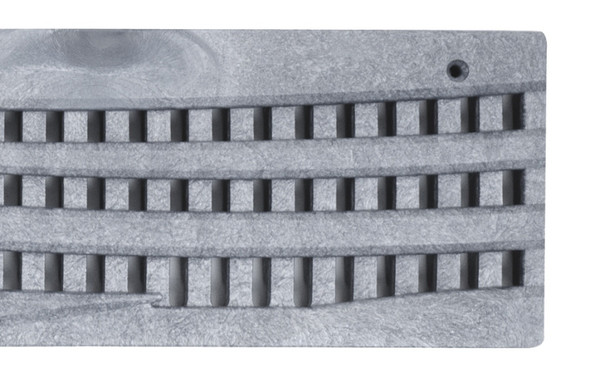

Grate Features

  • Actual dimension 4.42" x 24"
  • Requires 4 #829 Screws
  • Structural foam polyolefin channel grate with UV inhibitor
  • Open surface area 7.78 square inches per lineal foot / 23.8 GPM per lineal foot
  • ADA Compliant / Heel Proof
  • Recommended for medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 mph
  • Class B Load Rating: 61-175 psi
  • Load rating is based on encasing channel in concrete

Channel Features

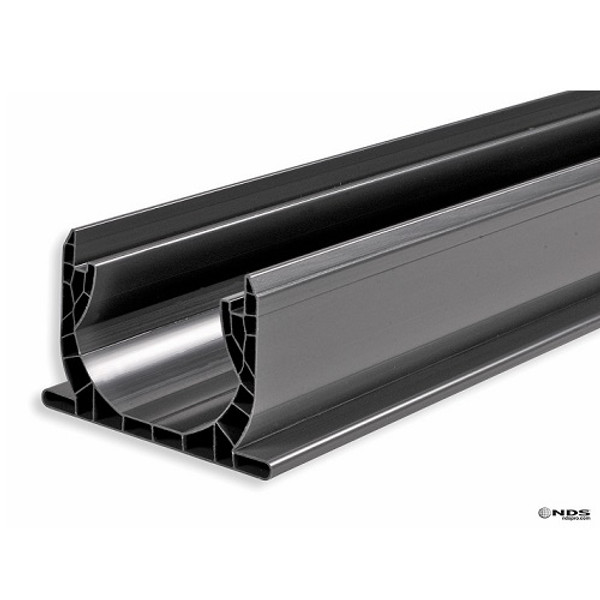

  • 4 ft. long PVC Spee-D Channel Drain
  • Inverse flying buttress design
  • Bottom flange
  • Patented honeycomb reinforced walls
  • UV inhibitor
  • See Product Brochures & Specifications for installation recommendations
