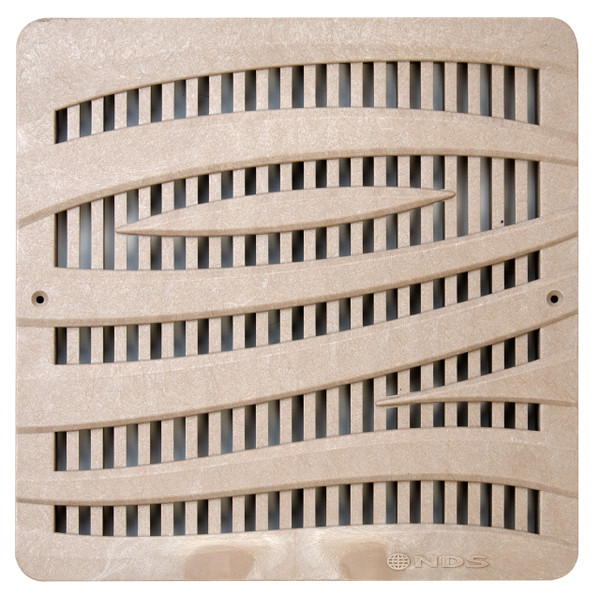

NDS Square Decorative Wave Grate for 12" Basin - Sand (Each)

No reviews yet

$53.79

Current Stock:

Quantity:

$53.79

Also Available: Contractor Pack of 8 grates

Click here for box of 8 Sand NDS1224S_BX

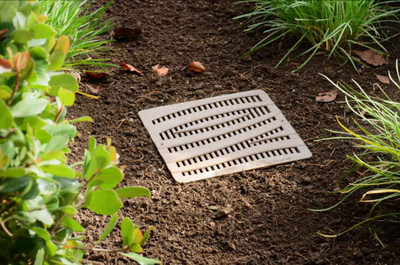

Ideal for yard / area drains to collect surface water while minimizing the amount of debris entering the system.

Features

Actual dimension 12" x 12" x 1.52"
Use with 12" Catch Basin Series
Square High Density Polyethylene (HDPE) Grate
Open surface area 25.67 square inches per sq. ft.
78.53 GPM per sq. ft. with 1/2" of head
ADA Compliant
Recommended for medium-duty pneumatic tire traffic, auto and light trucks at speeds less than 20 MPH with proper installation
Load Class B: 61-175 psi
Load rating is based on encasing product in concrete
