Reed 700PD Power Drive 05270

No reviews yet Write a Review
Usually Ships in 24 Hours

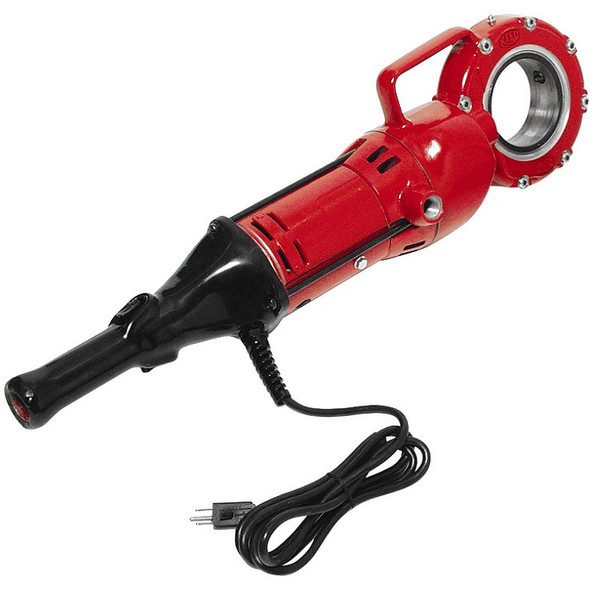

Reed 700PD Power Drive 05270


Power Drive 120V, 60 Hz

700PD Power Drive is a portable, electric, heavy-duty power drive that threads pipe and conduit up to 2” (50 mm) in diameter.

700PD is 1/2 horsepower, double insulated, turns at 28 RPM (no load) and uses a forward/reverse switch.

The REVERSE button on the power drive is used to properly and quickly remove the threader drophead or die head from pipe that has just been threaded. There is no threading done while in the REVERSE position.

700PD uses REED R12+ Segmental Dies and Dropheads or Ridgid® 12R dies and dropheads. Add the optional Safety Arm to absorb the forces generated when threading.  Safety arm provides stability and frees up the operator to oil the dies during threading.

Also, the 700PD power drive can be used to power tapping and drilling machines by adding a REED Power Drive Adapter.

700PD is approved for the US and CSA Canada specs!

RIDGID® is a registered trademark of Ridgid, Inc. and is not associated with Reed Manufacturing Company.

  • A workhorse model, designed for threading pipe and conduit up to 2” (50 mm) in diameter.
  • Vinyl-coated handle provides better electrical safety to the user.
  • Neoprene sealed switch helps keep dirt out and prolongs switch life.
  • Capacity:  1/8" - 2" NPT
