Reed H4I Hinged Pipe Cutter for Cast & Ductile Iron 03122
click to zoom in

Reed H4I Hinged Pipe Cutter for Cast & Ductile Iron 03122

No reviews yet Write a Review
$877.21
SKU:
H4I
UPC:
757033031227
Availability:
Usually Ships in 24 Hours
Proposition 65:
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Reed H4I Hinged Pipe Cutter for Cast & Ductile Iron 03122

$877.21

video gallery

Description

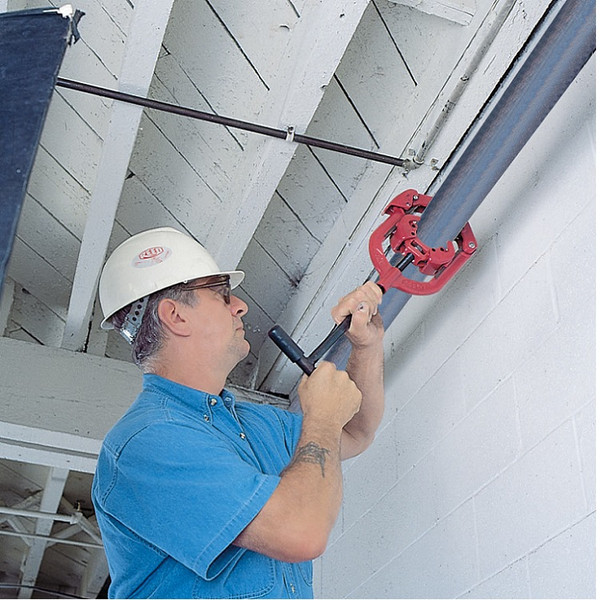

Hinged Pipe Cutters feature four wheels to cut steel, stainless steel, cast and ductile iron with only 90° to 110° handle swing. Only 4” (125 mm) clearance is required around pipe. Strong guide fingers ensure perfect wheel alignment for square cuts. A closed 360° frame on the hinged pipe cutter forces all energy into cutting the pipe for maximum efficiency. There is no shower of sparks in this cold cut. REED has the only hinged pipe cutter that tracks every time and the only one recommended for ductile iron, steel, and stainless steel to Schedule 100. This tool is a REED invention.

  • Another Reed invention that needs only 4” (102 mm) of clearance around pipe.
  • Efficient handle swing of only 90° to 110°.
  • Opens with hinge to place cutter around the pipe.

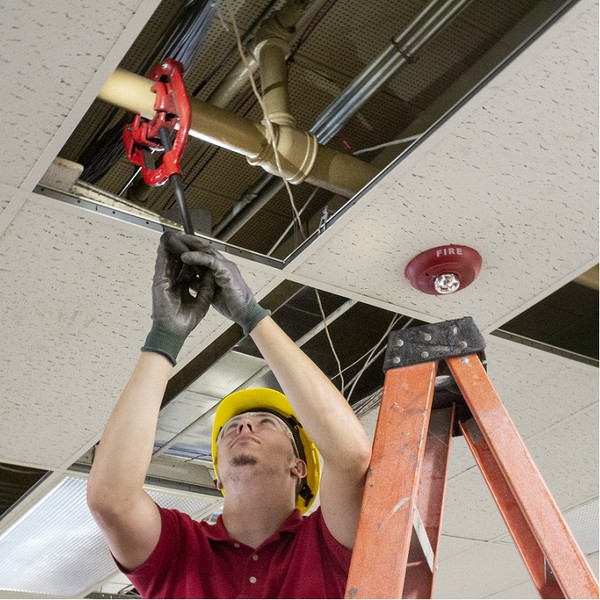

  • Can be used anywhere - in the ditch, underwater, overhead, in racks of pipe!
  • Application: Cast / Ductile Iron (Includes pipe schedule listed plus all lower schedules of same pipe type.)
  • Pipe Capacity: 2" - 4"
  • Cutter Wheel: HI4
  • Length: 22"



AVAILABLE HINGED CUTTERS:

H21/2S  1" - 2 1/2"   Steel & Stainless Steel Schedule 40

H21/2I   1" - 2 1/2"   Cast Iron & Ductile Iron

H21/2X  1" - 2 1/2"   Steel & Stainless Steel Schedule 40 & 80

H4S       2" - 4"         Steel * Stainless Steel Schedule 40

H4I        2" - 4"         Cast Iron & Ductile Iron

H4X       2" - 4"         Steel & Stainless Steel Schedule 40 & 80

H6S       4" - 6"         Copper

                                4" Stainless Steel & Steel Schedule 80

                                4 1/2" Stainless Steel & Extra Heavy Steel Schedule 80

                                5" Stainless Steel & Steel Schedule 80

                                6" Stainless Steel & Steel Schedule 40

H6I        4" - 6"         Cast Iron & Ductile Iron

H6X       4" - 6"          4" Stainless Steel Schedule 80 & Steel Schedule 120

                                4 1/2" Stainless Steel & Extra Heavy Steel Schedule 80

                                5" Stainless Steel & Steel Schedule 80

                                6" Stainless Steel & Steel Schedule 80

H8S       6" - 8"         Copper

                                6" Stainless Steel & Steel Schedule 80

                                7" Stainless Steel Schedule 40 & Standard Steel

                                8" Stainless Steel Schedule 40 & Steel Schedule 60

H8I        6" - 8"         Cast Iron / Ductile Iron

H8X       6" - 8"         6" Stainless Steel & Steel Schedule 40 & 80

                               7" Stainless Steel Schedule 80 & Extra Heavy Steel

                               8" Stainless Steel & Steel Schedule 80

H8XX     6" - 8"         6" Stainless Steel Schedule 80 & Steel Schedule 120

                               7" Stainless Steel Schedule 80 & Extra Heavy Steel

                               8" Stainless Steel Schedule 80 & Steel Schedule 100

H12S     8" - 12"       8" Stainless Steel Schedule 40 & Steel Schedule 60

                               9" Stainless Steel & Steel Schedule 40

                               10" Stainless Steel & Steel Schedule 40

                               11" Stainless Steel Schedule 40 & Standard Steel

                               12" Stainless Steel & Steel Schedule 40

H12I      8" - 12"       Cast Iron / Ductile Iron

H12X     8" - 12"       8" Stainless Steel & Steel Schedule 80

                               9" Stainless Steel Schedule 80 & Extra Heavy Steel

                               10" Stainless Steel Schedule 80 & Extra Heavy Steel

                               11" Stainless Steel Schedule 80 & Extra Heavy Steel

                               12" Stainless Steel Schedule 80 & Extra Heavy Steel

H12XX   8" - 12"       8" Stainless Steel Schedule 80 & Steel Schedule 100

                               9" Stainless Steel Schedule 80 & Extra Heavy Steel

                               10" Stainless Steel Schedule 80 & Steel Schedule 80

                               11" Stainless Steel Schedule 80 & Extra Heavy Steel

                               12" Stainless Steel Schedule 80 & Extra Heavy Steel

Specifications
