Reed UPC648A Universal Pipe Cutter 6"-48" 07511
click to zoom in

Reed UPC648A Universal Pipe Cutter 6"-48" 07511

No reviews yet Write a Review
$12,174.49
SKU:
UPC648A
UPC:
757033075115
Availability:
Usually Ships in 7-21 Business Days
Proposition 65:
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Reed UPC648A Universal Pipe Cutter 6"-48" 07511

$12,174.49

video gallery

Description

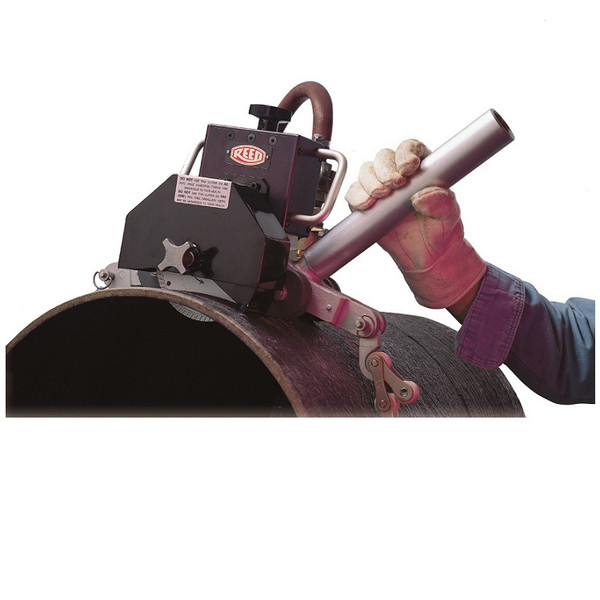

The REED UPC is lightweight; cuts fast; requires only 12” clearance around the pipe; provides a square cut virtually every time; and can be operated underwater. It is by far the safest, easiest and fastest power cutter to setup, operate and maintain, which nets a low operating cost.

  • Designed to cut widest range of 6" - 48" diameter ductile or cast iron, clay, concrete, steel, PVC or PE pipe.
  • Pneumatic cutter can be adapted to a variety of uses, depending on blade selected.
  • Ships with 6 gallon water tank.
  • Heaviest cutter component, the main body, weighs just 28 pounds (13 kg). (Total weight 131 lbs.)

Must order REQUIRED blades SEPARATELY.  Use Reed's Blade Chart for guidance.

  • Pipe Diameter: 6" - 48"
  • Application: Cast Iron, Ductile Iron, Clay, Concrete, CPVC, PE, PVC Schedule 40, PVC C900 & C905, Steel Schedule 40

STANDARD EQUIPMENT

  • Power Cutter with 1.7 H.P. Motor
  • Chain / Turnbuckle Assembly
  • Connection Frames & Chain to cut up to 48"
  • Filter / Regulator / Lubricator with Stand
  • Water Tank: 6 gallon with cart
  • Carrying Case
  • Air Motor Oil
  • Grease Gun
  • Hex Key Wrench Set
  • Open End Wrenches
  • Wedges

UNIVERSAL PIPE CUTTER POWER REQUIREMENTS

  • Maximum RPM: 3675
  • Air Consumption: 50 cu. ft. / min
  • Pressure: 90 PSI Maximum
  • Shut-Off: 3/4" Ball Valve
  • Air Supply Fittings:  3/4" Dixon "Air King" Coupling

NOTE: Universal Pipe Cutters must ship via truck freight.

NOTE: When cutting steel pipe with the steel blades, sparks are possible and expected. Because of the sparks, the UPC cannot be used for cold cuts.



Specifications
