Spee-D® Contour™ Channel Drain Middle Section and Gray Grate
click to zoom in

Spee-D® Contour™ Channel Drain Middle Section and Gray Grate

No reviews yet Write a Review
$11.46
SKU:
NDS400-ACM-WH
UPC:
052063082349
Availability:
Usually Ships in 24 Hours

Spee-D® Contour™ Channel Drain Middle Section and Gray Grate

$11.46

video gallery

Description

Transform your channel drain applications to form natural curves on hardscapes with the Spee-D® Contour™ channel drain. Whether you’re creating open curves or closed loops, this channel drain redefines what’s possible to elevate your projects with less installation time and hassle.

Applications: Pools and Patios, Fountains, Sunken Fire Pits, Splash Pads

Spee-D® Channel Drain Family
Integrates seamlessly with the Spee-D® channel drain and accessories such as the coupling, end cap, and end outlet to create unique, custom projects.

Features

  • Make natural curves in your channel drain system that are quick and easy to install along irregular or curved hardscapes
  • Ideal for following contours of free-form pool decks and patios, fountains, splash pads, fire pits, and similar hardscape areas
  • Connects with other middle channels to form organic curves and bends in the channel drain run or to form a closed loop
  • Precise turns - Once assembled, sections create a pivot joint that provides 0 to 9 degrees of angular motion to rotate sections to the desired angle
  • Smooth install - Patented design makes channel assembly easy; Spee-D® Contour™ middle sections connect without couplings
  • Compatible with Spee-D® Contour™ channel drain additional middle sections to form curves or closed loops; compatible with start and end sections to transition to straight Spee-D channel drains
  • Rated for NDS Class B loads (up to 175 psi) when properly installed—recommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph; ADA compliant; treated with UV inhibitors to prevent fading and cracking
  • As part of a complete drainage system, the Spee-D® Contour middle section connects with other middle sections to create a curved channel drain design or connects to start and end sections

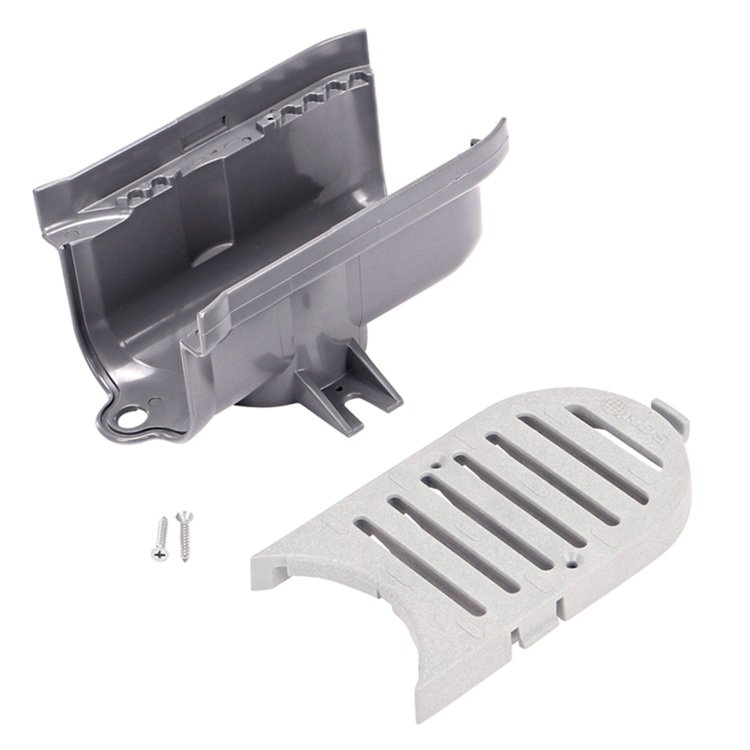

  • Comes with one Spee-D® Contour™ channel drain middle section, one gray grate, and two grate screws
  • NDS400-ACSE-WH Start and End Section Kit with Gray Grates is required to connect to straight channel sections, outlets and other components in the Spee-D Drain family
  • Fits: NDS Spee-D Channel Drains #400 (4-Foot Section), #400-10 (10-Foot Section) with NDS400-ACSE-WH Start and End Section Kit with Gray Grates
  • No couplings required between the Spee-D Contour. Pieces snap together for a secure fit.
  • Use with Start & End Kit to transition to straight Spee-D channel drains
  • Couplings are required to connect to the straight runs and other components of the Spee-D family.
  • Deflection: 0-9 Degrees
  • Flow Rate: 51 GPM
  • Open Surface Area: 16.8 sq in per linear ft.
