Spee-D® Contour™ Channel Drain Start and End Kit
click to zoom in

Spee-D® Contour™ Channel Drain Start and End Kit

No reviews yet Write a Review
$23.72
SKU:
NDS400-ACSE-WH
UPC:
052063082035
Availability:
Usually Ships in 24 Hours

Spee-D® Contour™ Channel Drain Start and End Kit

$23.72

video gallery

Description

Transform your channel drain applications to form natural curves on hardscapes with the Spee-D® Contour™ channel drain. Whether you’re creating open curves or closed loops, this channel drain redefines what’s possible to elevate your projects with less installation time and hassle.

Applications: Pools and Patios, Fountains, Sunken Fire Pits, Splash Pads

Spee-D® Channel Drain Family
Integrates seamlessly with the Spee-D® channel drain and accessories such as the coupling, end cap, and end outlet to create unique, custom projects.

Features

  • Make natural curves in your channel drain system that are quick and easy to install along irregular or curved hardscapes
  • Ideal for following contours of free-form pool decks and patios, fountains, splash pads, fire pits, and similar hardscape areas

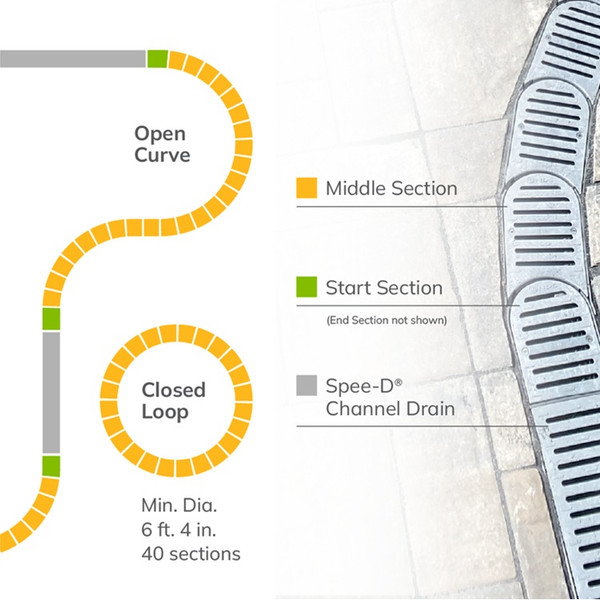

  • Connects to middle sections to transition from the Spee-D® Contour™ channel drain to the straight Spee-D channel drain; Start & End kit is not required for closed loop drainage designs
  • Precise turns - Once assembled, sections create a pivot joint that provides 0 to 9 degrees of angular motion to rotate sections to the desired angle

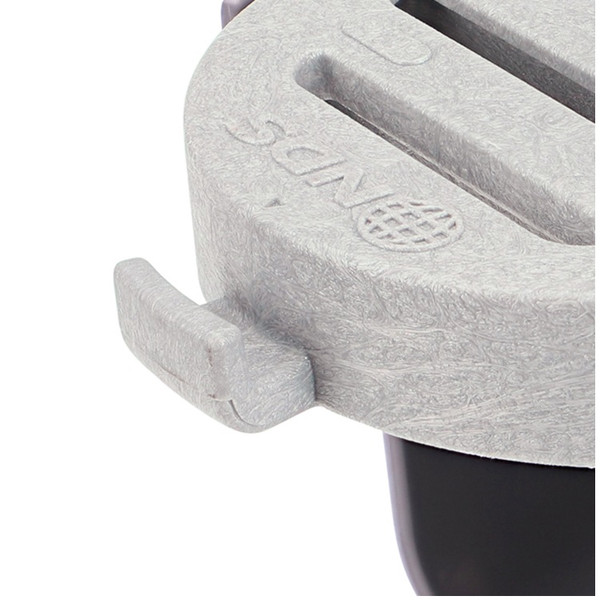

  • Smooth install - Patented design makes channel assembly easy; use couplings to connect Spee-D® Contour™ start and end sections to the Spee-D channel drain; middle sections connect to start and end sections without couplings
  • Compatible with Spee-D® channel drain and accessories for smooth transitions from curved to straight channel drains; works with a wide array of Spee-D® accessories such as the end cap, end outlet, offset end outlet, coupling, strainer coupling, channel with bottom outlet
  • Rated for NDS Class B loads (up to 175 psi) when properly installed—recommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph; ADA compliant; treated with UV inhibitors to prevent fading and cracking
  • Comes with Spee-D® Contour™ channel drain start and end sections, two gray grates, and four grate screws
  • NDS400-ACSE-WH Start and End Section Kit with Gray Grates is required to connect NDS400-ACM-WH Spee-D® Contour™ Channel Drain Middle Section and Gray Grate to straight channel sections, outlets and other components in the Spee-D Drain family
  • Fits: NDS Spee-D Channel Drains #400 (4-Foot Section), #400-10 (10-Foot Section)
  • No couplings required between the Spee-D Contour Middle, Start and Ends. Pieces snap together for a secure fit.
  • Couplings are required to connect to the straight runs and other components of the Spee-D family.
  • Deflection: 0-9 Degrees
  • Flow Rate: 51 GPM
  • Open Surface Area: 16.8 sq in per linear ft.
