5' x 5' Anti-Seep Collar for 10" Pipe

No reviews yet Write a Review
$447.50
SKU:
ANTISEEP5X5X10
Availability:
Usually Ships in 2-3 Business Days

5' x 5' Anti-Seep Collar for 10" Pipe

$447.50

5' x 5' Anti-Seep Collar for 10" Pipe

$447.50

Anti-Seep collars are user friendly and can be installed during new pipe installation or around an existing pipe.

  • Help prevent your pipe from being washed out.
  • Constructed from durable 1/4" high density polyethylene plastic (HDPE)
  • Pre-cut and drilled with stainless steel bolts and bands.
  • Tools needed to assemble: Two small wrenches and a screwdriver.
  • Available for Corrugated Plastic, PVC and Steel Pipe
  • Available in 4' x 4', 5' x 5' and 6' x 6' sizes.
  • Pipe Type and OD - Outside Diameter required
  • Shipping is included in the 48 contiguous states

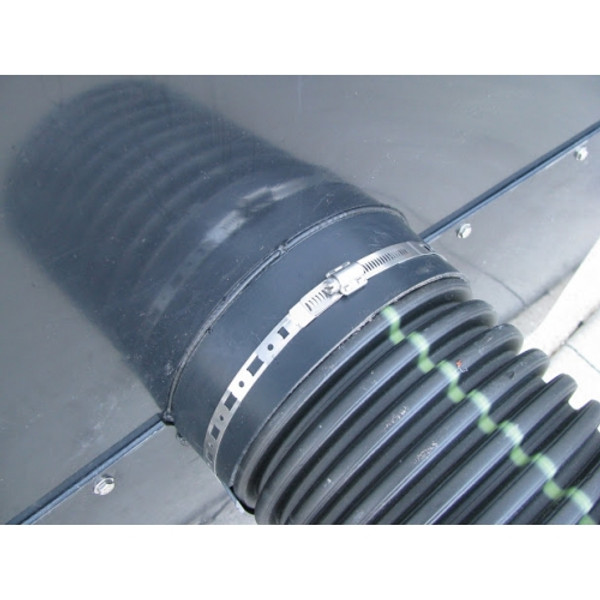

NOTE: Actual size not shown.  Picture is a 6' x 6' x 10".  The flat surface of the Anti-Seep is reduced as the diameter of the pipe increases.

For example:

A 4' x 4' x 12" - approximately 17" +/- of flat surface on each side.

A 4' x 4' x 18" - approximately 14" +/- of flat surface on each side.

Installation Instructions:

  1. Apply tar or mastic to bottom half of collar and lay pipe on collar.
  2. Apply mastic to top half of collar and set in place lining up red stripes.
  3. Bolt two halves together.
  4. Install metal bands on split halves of collar.
  5. Tighten bolts and bands.
  6. Apply mastic as needed for a good seal.
  7. Backfill and hand tamp.
