ABT Polydrain 6" Gender Mender Modified Channel 050GM

No reviews yet Write a Review

Call for price & availability

SKU:
ABT2050GM
Availability:
Usually Ships in 3-5 Days

ABT Polydrain 6" Gender Mender Modified Channel 050GM

6" to 6.3" Overall Depth ABT PolyDrain Channel

Features

  • PolyDrain polymer concrete trench drains give the specifier the precision and accuracy required to satisfy hydraulic and chemical resistant demands.
  • PolyDrain polymer concrete trench drains are 6.1" wide, 39.19" (3.27' / 1M) with a built-in slope of 0.6%.
  • 4" inside diameter with a radius bottom
  • 6" to 6.3" Overall Depth PolyDrain Channel
  • 6" end connects to channel #040
  • 6.3" end connects to channel #050< li>

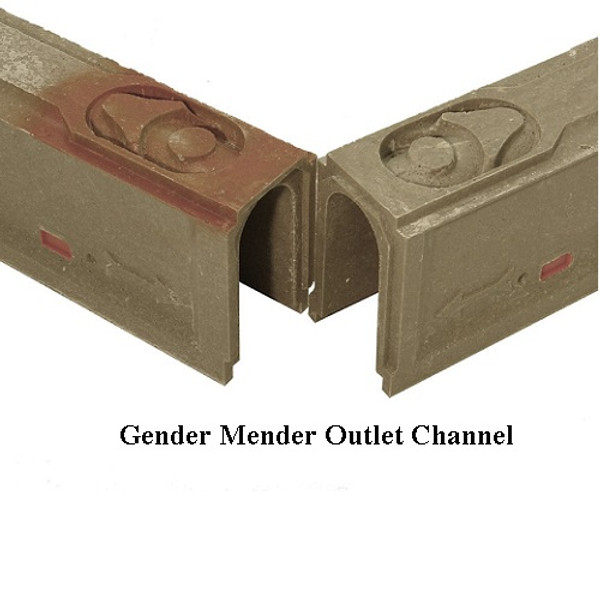

  • GENDER MENDER OUTLET CHANNEL: A series of specially modified channels that addresses the difficulties encountered when two sloping channels converge where a vertical outlet is required. For every outlet channel (050, 100, 150, 200, 250 and 300), a Gender Mender channel is molded with a female interlocking joint at the low point. This feature provides proper channel alignment and eliminates field fabrication for these center draining configurations.
  • <
  • Technical information available in the Specifications Library
