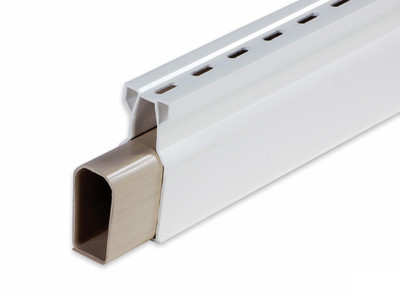

Box of 5' Sections includes 10 channels with one coupling per channel. (+/-1")
Also available in 10' long section with one coupling. (+/-1")
Excellent performance at lowest possible cost.
Designed for residential applications including swimming pools, spas and patios.
Micro Channel Couplings must be used to connect to Micro Channel Fittings.
10' sections must ship via Common Carrier Truck Lines.
5' long section with one coupling. (+/-1") ships via UPS
- Unique design features grate openings parallel to channel length and recessed grate for strength and effective water runoff
- Micro Channel with recessed reinforced grate area
- Parallel drain slots with UV Inhibitor
- Open surface area 2.5 square inches per lineal foot / 3.28 GPM per foot
- Recommended for pedestrians, bicycles and wheel chair traffic
- Class A Load Rating: 1-60 psi
- See Technical Specs • Product Brochures & Specifications for installation recommendations
- Recommended Applications

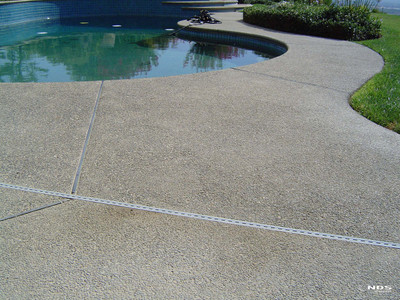

- • Tennis Courts • Patios • Swimming Pools & Spas
