Ideal for pool, patio and area drains to collect surface water while minimizing the amount of debris entering the system.NDS Mini Channel and grates are dimensionally compatible with standard 2-3/8î clay and concrete paving systems. Both decorative andstandard grate options make Mini Channel an ideal choice for drainage on paver parking courts, patios and plazas.

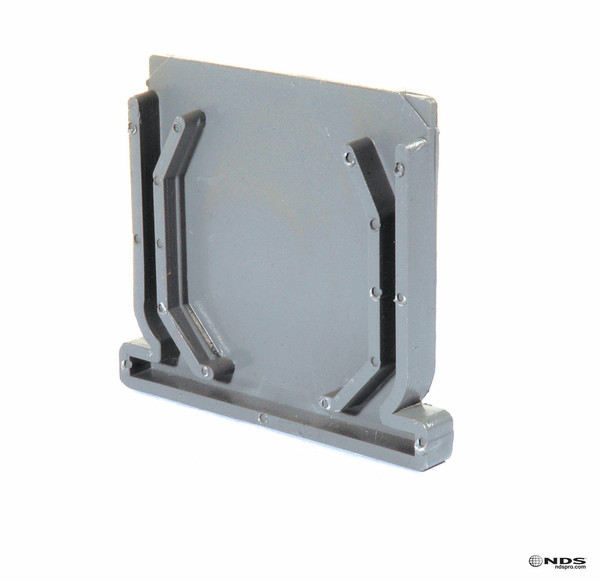

Kits includes: NDS Mini Channel 3" (500), 2 NDS Mini Channel Gray Wave Plastic Grates (555GY), NDS Coupling (548), NDS Mini Channel End Outlet (546) and NDS Mini Channel End Cap (547)
- Actual dimension Actual dimension 3.08" x 36"
- Requires 4 #846 Screws
- Structural foam polyolefin channel grate with UV inhibitor
- Open surface area 5.44 square nches per foot / 16.64 GPM per foot
- ADA Compliant / Heel Proof
- Recommended for medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 mph
- Class B Load Rating: 61-175 psi
- Load rating is based on encasing channel in concrete
- 6 ft. long +/- 1" PVC Mini Channel Drain
- Inverse flying buttress design
- Bottom flange
- Patented honeycomb reinforced walls
- UV inhibitor
- See Product Brochures & Specifications for installation recommendations
