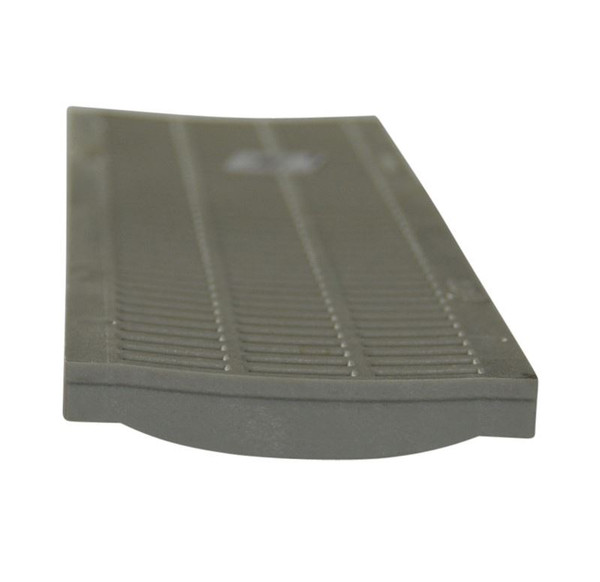

NDS Pro Series 3" Channel Grate Only (Each)

No reviews yet Write a Review
$15.45
SKU:
NDS714
UPC:
52063071404
Availability:
Usually Ships in 24 Hours

NDS Pro Series 3" Channel Grate Only (Each)

$15.45

Also Available: Contractor Pack of 16 grates NDS714_BX

Use with 3" Pro Series Channel Drain Series

Features

  • Actual dimension 3 7/8" x 19 11/16" x 1/2"
  • High impact PVC light traffic channel grate
  • Open surface area 20.44 square inch/foot
  • 26.77 GPM per foot
  • Requires 4 #229 Screws
  • Recommended for medium-duty pneumatic tire traffic.
  • Autos and light trucks less than 20 mph
  • Class B Load Rating: 61-175 psi
  • See Technical Specs • Product Brochures & Specifications for installation recommendations
