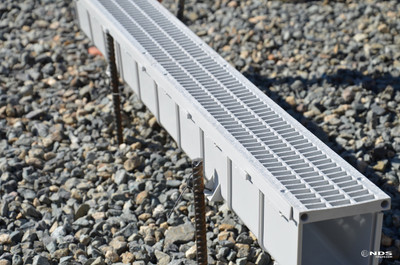

NDS Pro Series 3" x 1 Meter Channel Drain & Grate Kit (Each)
click to zoom in

NDS Pro Series 3" x 1 Meter Channel Drain & Grate Kit (Each)

No reviews yet Write a Review
$62.55
SKU:
NDS764
UPC:
52063076409
Availability:
Usually Ships in 24 Hours

NDS Pro Series 3" x 1 Meter Channel Drain & Grate Kit (Each)

$62.55

video gallery

Description

Also Available: Contractor Pack of 10 channel kits NDS764_BX

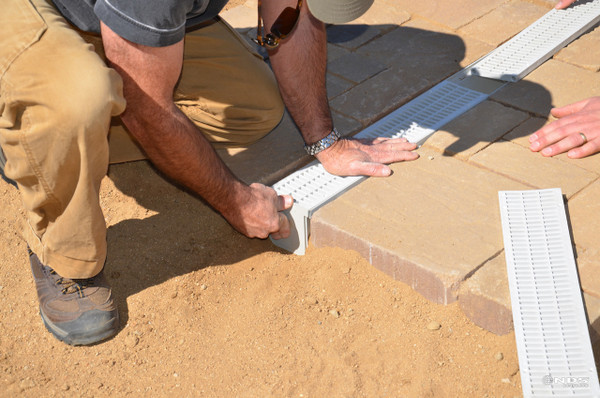

3" Pro Series channel drains also come in a pre-assembled kits to decrease installation time. They act as perimeter drains, quickly removing water from hardscapes and directing it away from building structures. A bottom outlet is built into each channel section.

Features

  • Kit include channel, grates, one end cap and one end outlet
  • 39 3/8" long deep profile high impact PVC channel drain with mechanical interlocking joint
  • Structural foam polyolefin light traffic channel grate
  • Open surface area 20.44 square inches per foot
  • 26.77 GPM per foot
  • UV inhibitors
  • Recommended for medium-duty pneumatic tire traffic.
  • Autos and light trucks less than 20 mph
  • Class B Load Rating: 61-175 psi
  • Create a channel as long as you need, or reduce to lengths as short as 4" for smaller, interlocking sections
  • End cap/knock-out end and outlet fitting simplifies assembly and installation
  • End and bottom outlet fits 3" Sewer & Drain Fittings
  • See Technical Specs • Product Brochures & Specifications for installation recommendations
Specifications
