Reed HPC8+ Guillotine Pipe Cutter for PE 04609

No reviews yet Write a Review
Usually Ships in 7-14 Days
Proposition 65:
WARNING Cancer and Reproductive Harm -

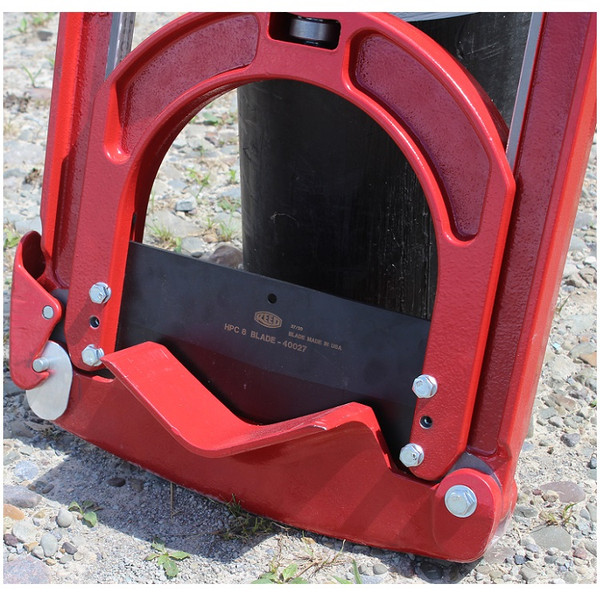

Reed HPC8+ Guillotine Pipe Cutter for PE 04609


Robust Guillotine Pipe Cutters are designed to cut PE pipe from SDR15.5 to SDR9 within 1/8” (3 mm) of square on medium and high-density pipe.

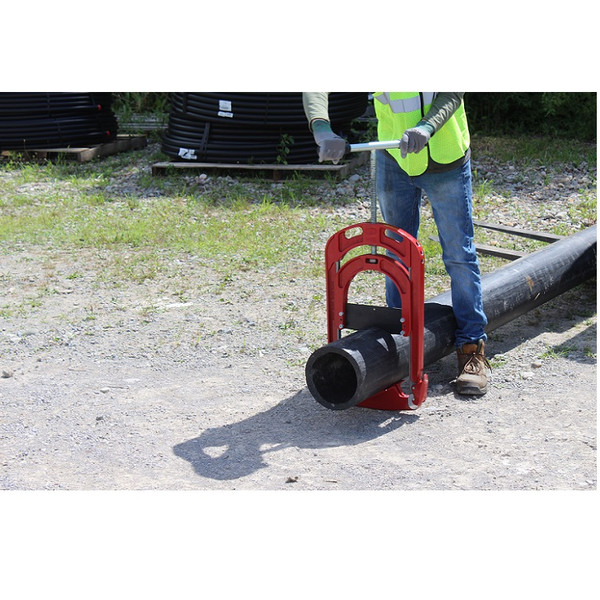

  • Manual, guillotine style cutter slices smoothly through PE.
  • All aluminum construction results in lighter tool weight and greater rigidity - 22%+ weight reduction versus prior HPC8 model.
  • Greater pipe capacity, up to 9.06” O.D. fits true 8” DIPS and IPS for PE.
  • Aluminum rails and crosshead have a hard anodized finish to reduce wear on sliding surfaces.
  • Superior cuts with USA made blade.
  • Squarest cut available, within 1⁄8" (3 mm) on medium and high density pipe, due to strong frames and unique blade design.
  • Saves facing cost: no facing needed for electrofusion, less needed for butt-fusion.
  • Requires minimal clearance, only 4" – 6" (102 - 152 mm) around pipe.
  • Clean and safe! No chips to clog valves and apertures.
  • Many high quality cuts, with durable non-stick coated (resharpenable and replaceable) tool steel blade.
  • Replacement Blades
  • Application: PE
  • SDR 15.5 - SDR9
  • Pipe Capacity: 3" - 8" DIPS & IPS
  • Length: 29.6"


HPCs cut PE only and will not cut PVC or PP (polypropylene) pipe, such as Aquatherm®.

Temperature impacts pipe density. Cold temperatures (below freezing) can significantly shorten blade life.

Blade is very sharp. Take care when reaching in that area.

For operator and blade safety, always transport the cutter with the blade fully seated in the base of the cutter. Use the blade guard if available since it protects the blade and the operator.

Reed strongly recommends use of the PEGR7 Static Grounding Device (#04621) with Guillotine Cutters. Use a grounding device as a precaution against static build-up. Dissipate the charge and minimize the possibility of ignition.
