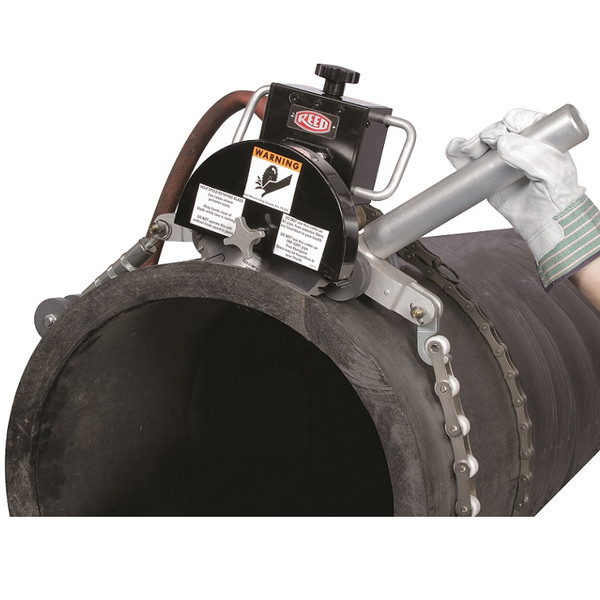

Reed UPC848APE Universal Pipe Cutter 8"-48" 07518
click to zoom in

Reed UPC848APE Universal Pipe Cutter 8"-48" 07518

No reviews yet Write a Review
$10,983.40
SKU:
UPC848APE
UPC:
757033075184
Availability:
Usually Ships in 7-21 Business Days
Proposition 65:
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Reed UPC848APE Universal Pipe Cutter 8"-48" 07518

$10,983.40

video gallery

Description

The REED UPC is lightweight; cuts fast; requires only 12” clearance around the pipe; provides a square cut virtually every time; and can be operated underwater. It is by far the safest, easiest and fastest power cutter to setup, operate and maintain, which nets a low operating cost.

  • Specifically designed for cutting PE Pipe.
  • Lightweight, easy-to-use.
  • Includes special blades and blade guard for cutting PE.
  • Pneumatic-powered UPC836APE Universal Pipe Cutters for PE cuts 8” -48” nominal diameter (200-1000 mm actual O.D.) PE pipe.

Both UPC836APE and UPC848APE kits ship in a steel toolbox and include a UPC cutter, a filter-regulator-lubricator, #97520 and #97521 blades. The #97521 blade will cut large diameter PE pipe with a wall thickness up to 2.65” (67 mm). To cut 6” - 8” PE pipe, the #97519 blade must be ordered separately.

Use Reed's Blade Chart for guidance.

  • Pipe Diameter: 8" - 48"
  • Application: PE, HDPE

STANDARD EQUIPMENT

  • Power Cutter with 1.7 H.P. Motor
  • Chain / Turnbuckle Assembly
  • Connection Frames & Chain to cut up to 36"
  • Filter / Regulator / Lubricator with Stand
  • Carrying Case
  • Air Motor Oil
  • Grease Gun
  • Hex Key Wrench Set
  • Open End Wrenches
  • Wedges
  • UPCSTEEL6 6" Blade
  • UPSPE8 8" Blade

UNIVERSAL PIPE CUTTER POWER REQUIREMENTS

  • Maximum RPM: 3675
  • Air Consumption: 50 cu. ft. / min
  • Pressure: 90 PSI Maximum
  • Shut-Off: 3/4" Ball Valve
  • Air Supply Fittings:  3/4" Dixon "Air King" Coupling

NOTE: Universal Pipe Cutters must ship via truck freight.

NOTE: When cutting steel pipe with the steel blades, sparks are possible and expected. Because of the sparks, the UPC cannot be used for cold cuts.
