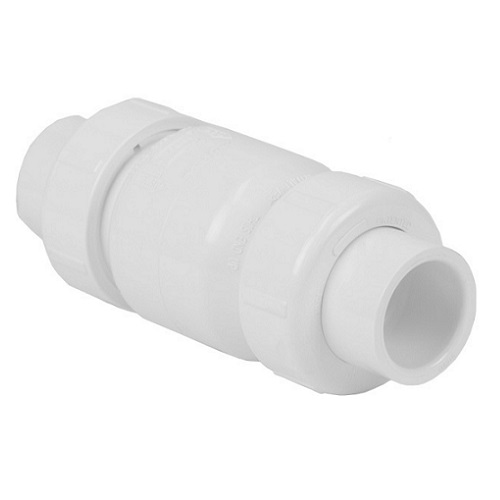

White PVC 3/4" True Union Swing Check Valve (FPT x FPT)

No reviews yet Write a Review
$26.55
SKU:
1720-07F
Availability:
Usually Ships in 24-48 Hours

White PVC 3/4" True Union Swing Check Valve (FPT x FPT)

$26.55

Engineered for maximum flow, quick response and positive shutoff  Excellent for pool & spa and general purpose applications.  Swing checks valves are designed for horizontal installations, but may be installed in up-flow only vertical installations.  Check valves MUST be installed with the valves FLOW arrow pointing in the direction of the flow.  Do not install upside down.

  • True Union Female Pipe Thread (FPT) x True Union Female Pipe Thread (FPT)
  • High Grade EPDM Seat
  • Color: White
  • Suitable for Horizontal or Vertical Up-flow Installations
  • Angled Seat and Weighted Flapper for Low Pressure Seal
  • All Plastic Construction - No Metal Parts
  • Pressure Rating @ 73°F (23°C), Water
  • Full Flow (open) 150 psi
  • Back Pressure (closed) 75 psi
  • Maximum Service Temperature 140°F (60°C)
  • Temperature/Pressure De-ratings Apply
  • Call for options including: White PVC Threaded or Steel Reinforced Threaded or Clear PVC Socket, Threaded or Steel Reinforced Threaded
  • 1780 Series Spring Check Valves also available
